• All plates are squared and sheared accurately to close tolerances.
• Mid-States Soles and Sleeves are formed on our Presses using special dies to assure accuracy and uniformity.
• After forming all pieces are inspected to assure the closest possible tolerances for field installation in the harshest environments.
• Fabricated from high strength steel plate with proper carbon content to assure good weld ability without sacrificing yield and tensile strength.
• Custom fabricated to meet standard or special sizes, thickness and material grade requirements.

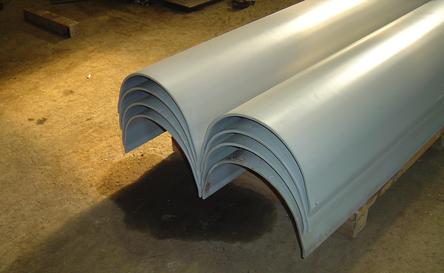

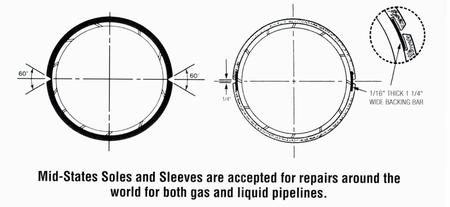

Full Encirclement soles and sleeves are widely accepted for repair, restoring and maintaining the serviceability of damaged or defective pipeline.  Repairing your pipeline becomes an easier, more efficient operation when Mid-States Full Encirclement Soles and Sleeves are used. You can depend on additional savings, as it is easier to install Mid-States Soles and Sleeves. Our quality control process insures that most consistent and highest quality available in the pipeline industry today.

FULL ENCIRCLEMENT SOLES AND SLEEVES

​​Over 25 years of experience

Mid-States Industrial Sales, Co. LLC

IMPERIAL, MISSOURI

SPECIFICATIONS

​

SIZES

• Any size can be furnished from 4" standard pipe and larger.

• We also supply custom sizes and shapes (such as over-sleeves) to fit your special and unique requirements.

THICKNESS

• Standard thicknesses are 5/16", 1/4" , 3/8", 1/2" and 5/8".

• However, any thickness can be furnished to suit your requirements.

LENGTHS

• Standard length is 10'-0".

• However, other lengths can be furnished to suit your special needs.

MATERIAL

• Mid-States Sleeves are fabricated from high yield steel plate with low C.E. ratio to assure good weld ability.

• Certified Mill Test Reports are supplied for all our steel Soles and Sleeve.
